Read guideOpenGL and DirectX tangent-space normal maps mainly differ in the sign of the Y, or green, channel. The correct convention depends on the renderer and export target. This handbook keeps action, mechanism, and acceptance evidence on one production path. The aim is not to memorize menus. It is to let another artist reach the same conclusion from the same inputs, identify a version boundary, locate a failure, and recover without damaging the source.
Validated in Blender 5.2.0 LTS against Khronos glTF 2.0.1 tangent-space normal definitions. Blender commonly consumes +Y/OpenGL-style maps, but source and target must always be verified. “Verified” means the written condition was checked against that version, repository behavior, primary specification, or named target. It does not promise that an arbitrary third-party exporter or viewer preserves the same capability. Easy-series statements are constrained by manifests, implementation, unit tests, and Blender 5.2 smoke evidence.
OpenGL and DirectX tangent-space normal maps mainly differ in the sign of the Y, or green, channel. The correct convention depends on the renderer and export target. The deliverable is more than a good render or a file that opens once. It includes replayable steps, stage gates, diagnostic notes, a dependency inventory, and target-side evidence. Success that cannot be reproduced in a clean environment remains a possible cache or workstation artifact.
Representative input with units, dimensions, provenance, and one known failing control
An untouched high-quality source plus separate diagnostic, interchange, and delivery copies
Full Blender, Easy extension, exporter, and target-viewer version records
A writable staging root, dependency inventory, acceptance matrix, and rollback points
A neutral light rig, close diagnostic camera, and final delivery camera
Before starting OpenGL vs DirectX Normal Maps, duplicate the source and hash critical inputs. Record the operating system, build, target format, viewer, and case budget together. When results diverge, that evidence separates content, tool, and environment changes instead of asking the team to reason across moving variables.
Principle 1: Never guess a convention from the color alone. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
Principle 2: Blender commonly expects OpenGL-style tangent normal maps. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
Principle 3: DirectX maps can be converted by inverting the green channel. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
Principle 4: Set the image to Non-Color before interpreting it as a normal. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
Principle 5: Clear or recalculate custom normals only when they are actually invalid. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
Principle 6: Validate in the final target viewer, not only Blender. Bind it to an observable signal and rollback point. A claim that only says the result “looks better,” without measurement or controlled comparison, is not a production gate.
A stamped leather panel should show a raised diagonal ridge. Its map is documented as DirectX/−Y, so Blender initially shows a dent. Transforming green to 1 − G restores the ridge. A mirrored test object retains negative scale to prove that a separate tangent fault cannot be repaired by flipping green. The case retains a failing control so the team can distinguish a genuinely correct workflow from a result that merely happens to work. Its values are case acceptance targets, not universal standards; a different camera, device, license, or delivery format requires a new budget.
The diagram connects the eight OpenGL vs DirectX Normal Maps stages to explicit gates. Arrows describe dependencies, not a ban on iteration. When diagnosis disproves an upstream assumption, return to the earliest stage that owns that variable, correct it, and replay every dependent gate.
Action. Freeze the acceptance target: OpenGL and DirectX tangent-space normal maps mainly differ in the sign of the Y, or green, channel. The correct convention depends on the renderer and export target. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. Tangent-space RGB is vector data and uses Non-Color. The governing principle is: Never guess a convention from the color alone. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Establish the input baseline before judging processing. “Tangent-space RGB is vector data and uses Non-Color” is the factual anchor for this stage. Compare an untouched sample with the working copy under identical conditions and attribute only the change introduced here.
Stage gate. Acceptance is Raised details read as raised. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: Flipping every normal map automatically can convert a correct map into an incorrect one. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Confirm the source convention from the texture publisher or generator. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. OpenGL/+Y and DirectX/−Y primarily differ in green direction. The governing principle is: Blender commonly expects OpenGL-style tangent normal maps. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Structure can remain wrong while the beauty view looks plausible. “OpenGL/+Y and DirectX/−Y primarily differ in green direction” turns ownership into an inspectable condition. Verify it in the hierarchy, data-block graph, or directory layer before visual refinement expands the cost of correction.
Stage gate. Acceptance is Green channel convention is documented. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: Deleting custom normals does not fix a wrong green channel. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Set the normal image to Non-Color and connect it through a Normal Map node. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. Convention conversion uses G′ = 1 − G without changing red or blue. The governing principle is: DirectX maps can be converted by inverting the green channel. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Preparation converts hidden state into recorded state. “Convention conversion uses G′ = 1 − G without changing red or blue” defines the coordinate, path, or interpretation that later operations consume. Preserve before-and-after values and reproduce the premise in a clean representative sample.
Stage gate. Acceptance is No negative object scale remains. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: A mirrored object may look like a texture problem. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Light the surface from an oblique angle so raised and recessed forms are easy to read. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. A known asymmetric ridge determines raised versus recessed. The governing principle is: Set the image to Non-Color before interpreting it as a normal. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Keep the core operation single-variable. “A known asymmetric ridge determines raised versus recessed” is the only control allowed to move in this comparison; camera, exposure, caches, and unrelated branches remain fixed. A repeatable response establishes causality.
Stage gate. Acceptance is Tangents are generated consistently. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: USD, glTF, and FBX targets do not all preserve the same shading data. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. If Y appears inverted, flip only the green channel or use the correct import option. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. Negative object scale is applied before blaming the texture. The governing principle is: Clear or recalculate custom normals only when they are actually invalid. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Critical detail usually fails at boundaries rather than in a front view. Inspect “Negative object scale is applied before blaming the texture” close up, at a grazing angle, or across a hierarchy boundary, then compare that evidence with the approved delivery camera.
Stage gate. Acceptance is Custom normals are valid or removed. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: Flipping every normal map automatically can convert a correct map into an incorrect one. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Check mesh split normals, smoothing, tangents, and unapplied negative scale separately. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.

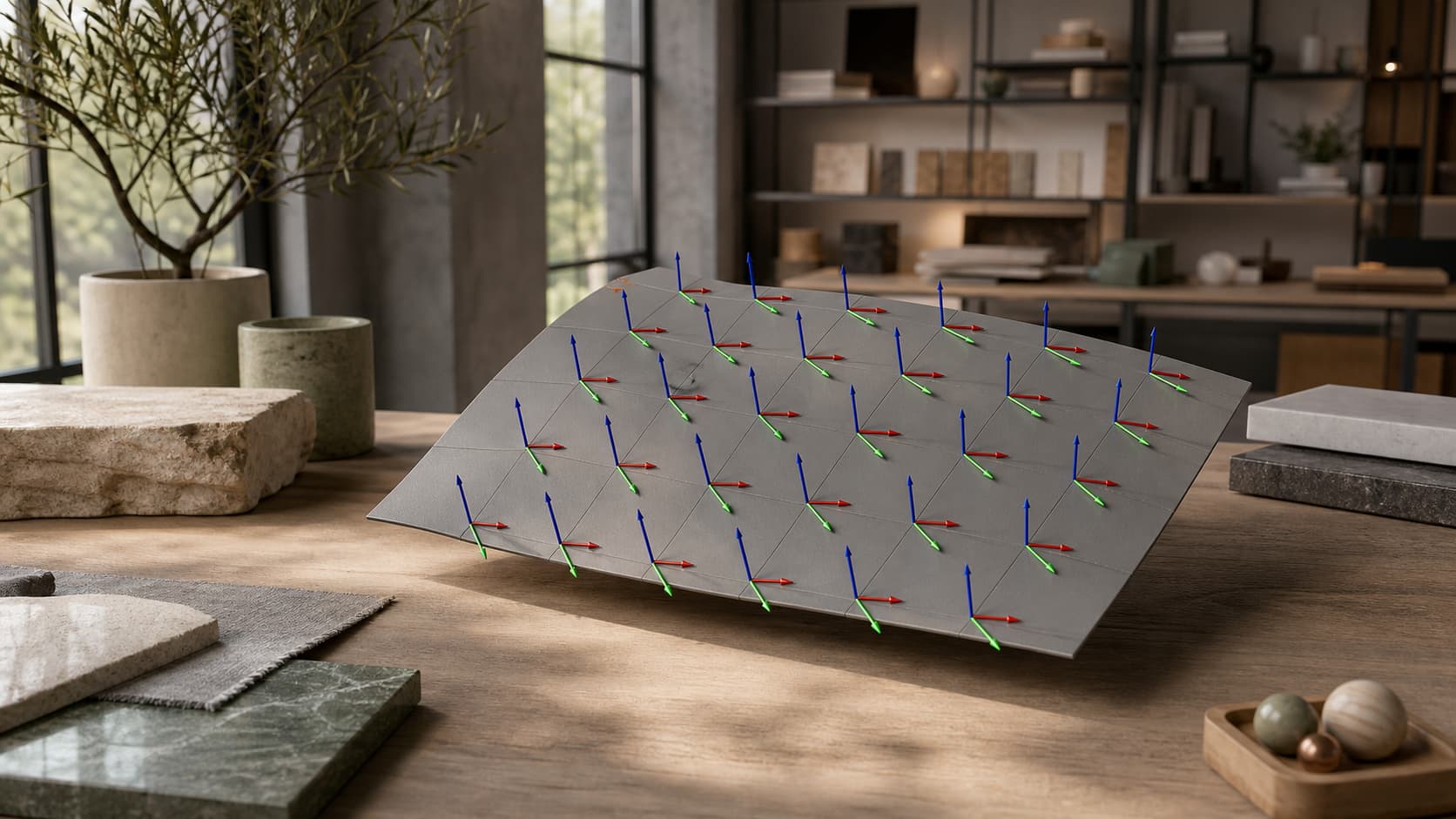

Control the variables. The rendered mesh has UVs and a reproducible tangent basis. The governing principle is: Validate in the final target viewer, not only Blender. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. A correct/error pair must share its inputs. Lock every condition except “The rendered mesh has UVs and a reproducible tangent basis” and save the same camera, exposure, and target-viewer result. The comparison then demonstrates the rule instead of two unrelated scene states.
Stage gate. Acceptance is Target viewer matches Blender. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: Deleting custom normals does not fix a wrong green channel. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Export a small test object and compare Blender with the target runtime. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. Custom split normals are removed only when proven invalid. The governing principle is: Never guess a convention from the color alone. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. Diagnosis starts at the earliest stage that owns the variable. Use “Custom split normals are removed only when proven invalid” as the smallest falsifiable test; if it fails, move upstream, and if it passes, restore materials, lights, modifiers, paths, and export settings one at a time.
Stage gate. Acceptance is Raised details read as raised. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: A mirrored object may look like a texture problem. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Action. Run the final OpenGL vs DirectX Normal Maps validation from the delivery package and archive the evidence. Give this stage one owner and one observable output. Work on the smallest representative part first; expanding an unverified operation across the project only multiplies uncertainty. Save a checkpoint before changing topology, file paths, color interpretation, hierarchy, or exporter state.
Control the variables. A minimal export is compared directly with the final target viewer. The governing principle is: Blender commonly expects OpenGL-style tangent normal maps. In OpenGL vs DirectX Normal Maps, treat it as a measurable production rule rather than general advice. Record the relevant dimension, path, data-block, material channel, object count, or target result beside the file so another artist can reproduce the decision without memory.
Understand the mechanism. The final gate validates the deliverable rather than the authoring workstation. Evidence for “A minimal export is compared directly with the final target viewer” must come from the final root, a re-imported file, or the named target while source paths, caches, and temporary copies are unavailable.
Stage gate. Acceptance is Green channel convention is documented. Capture evidence appropriate to the claim: a measurement, Outliner snapshot, path inventory, neutral render, validator report, re-import, or target-viewer comparison. The known trap is: USD, glTF, and FBX targets do not all preserve the same shading data. If the gate fails, return to the earliest stage that owns the fault instead of compensating downstream.
Stage | Acceptance | Evidence |
|---|---|---|
1 | Raised details read as raised | Reproducible evidence saved |
2 | Green channel convention is documented | Reproducible evidence saved |
3 | No negative object scale remains | Reproducible evidence saved |
4 | Tangents are generated consistently | Reproducible evidence saved |
5 | Custom normals are valid or removed | Reproducible evidence saved |
6 | Target viewer matches Blender | Reproducible evidence saved |
7 | Raised details read as raised | Reproducible evidence saved |
8 | Green channel convention is documented | Reproducible evidence saved |
A OpenGL vs DirectX Normal Maps reviewer must locate each item without asking the author and determine which source, version, and target it represents. Screenshots need diagnostic context, numbers need units, and export evidence must come from the final package rather than a temporary directory.
The OpenGL vs DirectX Normal Maps method follows an “earliest responsible stage” rule. Scale errors are not camera problems, origin errors should not require a manual offset on every placement, color-space errors should not be disguised with lighting, and unsupported shader graphs should not be left for a viewer to guess. Reducing a symptom to one variable minimizes repair and regression scope.
For OpenGL vs DirectX Normal Maps, assets still need distinct authoring, interchange, and delivery states. The authoring state preserves editability. The interchange state narrows expression to what the target understands. The delivery state optimizes size, dependencies, and device constraints. Distinct copies prevent portability work from permanently degrading the master.
Failure 1: Flipping every normal map automatically can convert a correct map into an incorrect one. Reproduce the smallest failure, disable unrelated lights, shader branches, modifiers, caches, or external paths, and change one condition. Save a same-camera, same-exposure, same-target comparison before accepting the explanation.
Failure 2: Deleting custom normals does not fix a wrong green channel. Reproduce the smallest failure, disable unrelated lights, shader branches, modifiers, caches, or external paths, and change one condition. Save a same-camera, same-exposure, same-target comparison before accepting the explanation.
Failure 3: A mirrored object may look like a texture problem. Reproduce the smallest failure, disable unrelated lights, shader branches, modifiers, caches, or external paths, and change one condition. Save a same-camera, same-exposure, same-target comparison before accepting the explanation.
Failure 4: USD, glTF, and FBX targets do not all preserve the same shading data. Reproduce the smallest failure, disable unrelated lights, shader branches, modifiers, caches, or external paths, and change one condition. Save a same-camera, same-exposure, same-target comparison before accepting the explanation.
Symptom | Most likely cause | Minimum test | Correction |
|---|---|---|---|
Flipping every normal map automatically can convert a correct map into an incorrect one. | Never guess a convention from the color alone. | Raised details read as raised | Confirm the source convention from the texture publisher or generator. |
Deleting custom normals does not fix a wrong green channel. | Blender commonly expects OpenGL-style tangent normal maps. | Green channel convention is documented | Set the normal image to Non-Color and connect it through a Normal Map node. |
A mirrored object may look like a texture problem. | DirectX maps can be converted by inverting the green channel. | No negative object scale remains | Light the surface from an oblique angle so raised and recessed forms are easy to read. |
USD, glTF, and FBX targets do not all preserve the same shading data. | Set the image to Non-Color before interpreting it as a normal. | Tangents are generated consistently | If Y appears inverted, flip only the green channel or use the correct import option. |
Diagnose OpenGL vs DirectX Normal Maps in this order: inputs, structure, transforms, mapping, shading, export boundary, and target. A minimum test that changes several variables is not falsifiable; reduce it. After repair, replay the critical path because local viewport success does not prove packaging, re-import, or the target viewer remains correct.
Validate the exact OpenGL vs DirectX Normal Maps file from the delivery directory while the original source path is unavailable. Record byte size, SHA-256, object and material counts, missing-dependency scan, re-import result, and target-viewer result. Interactive targets also require loading, console, and stable-frame evidence; asset libraries require drag, save, close, and reopen.
Untouched source and clearly named delivery copy
Blender, Easy extension, exporter, and target-viewer versions
Scale, transform, origin, hierarchy, material-slot, normal, and dependency checks
Reopen or re-import evidence executed from the final package
Target screenshots, validator output, file checksums, and known limitations
A delivery root containing only intentional files, without caches, backups, or helpers
These primary sources define the factual boundary for OpenGL vs DirectX Normal Maps. Blender operations point to the 5.2 manual, format guarantees point to specifications, and Easy behavior is constrained to repository version and smoke evidence.
